App task model

An AppTask is a user-facing task type in CAMS. You define app tasks in the study protocol, CAMS puts each triggered task on a queue, and your app renders that queue and drives each task through its lifecycle.

End-to-end flow

Define an app task in the protocol
Configure an AppTask with task metadata and one or more background measures.
Trigger and enqueue a user task
When the task is triggered, CAMS creates a UserTask and puts it on the task queue in the AppTaskController.
Render and run the task in the app
The app listens to the task queue, renders the task list and each task, and calls the callback methods that start, complete or cancel tasks.
Handle completion and notifications
The runtime APIs handle task state transitions and local notifications.

The examples on this page come from the PulmonaryMonitor app.

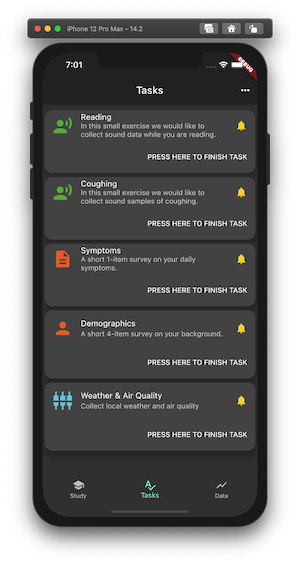

Task list

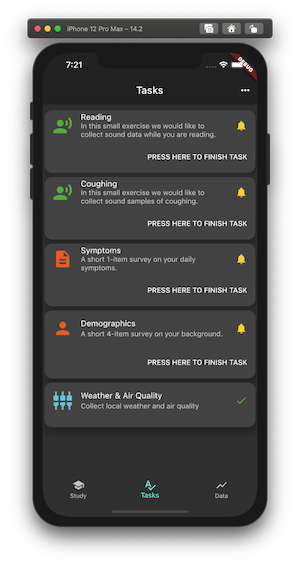

Task done

Configuring app tasks

In PulmonaryMonitor, app tasks are defined in study_protocol_manager.dart. The sensing task at the bottom of the task list comes from this configuration:

var protocol = SmartphoneStudyProtocol(...);

...

// Define which devices are used for data collection.
Smartphone phone = Smartphone();
protocol.addPrimaryDevice(phone);

// Define the online weather service and add it as a 'device'
final weatherService = WeatherService(
  apiKey: '...',
);
protocol.addConnectedDevice(weatherService, phone);

// Define the online air quality service and add it as a 'device'
final airQualityService = AirQualityService(
  apiKey: '...',
);
protocol.addConnectedDevice(airQualityService, phone);

// Create an app task that collects air quality and weather data,
// and notify the user.
//
// Note that for this to work, the AirQualityService and WeatherService
// need to be defined and added as connected devices to this phone.
var environmentTask = AppTask(
  type: AppTask.SENSING_TYPE,
  name: 'Environment Task',
  title: "Weather & Air Quality",
  description: "Collect local weather and air quality",
  notification: true,
  measures: [
    Measure(type: ContextSamplingPackage.WEATHER),
    Measure(type: ContextSamplingPackage.AIR_QUALITY),
  ],
);

// Make sure to always have an environment task on the task list by using
// a NoUserTaskTrigger.
protocol.addTaskControl(
  NoUserTaskTrigger(taskName: environmentTask.name),
  environmentTask,
  phone,
);

This code adds a NoUserTaskTrigger with an AppTask of type sensing and the measures WEATHER and AIR_QUALITY. When triggered, the task is enqueued and can be shown in the app UI. When the user starts it (for example by tapping PRESS HERE TO FINISH TASK), a background task collects the measures and the app task is marked as done.

An app task follows the Trigger-Task-Measure domain model in CAMS: a trigger activates the task, and the task defines which measures to collect. Unlike a BackgroundTask, an AppTask has user-facing properties:

Property	Purpose
`type`	Task type, for example sensing, survey or audio.
`title`	Short title shown on the task card.
`description`	Short descriptive text shown on the task card.
`instructions`	More detailed guidance for the user.
`time to complete`	Estimated completion time for the task.
`notification`	Whether a notification is sent when a new task is available.
`expire`	When the task expires and is no longer available.

For the rest of the setup, see the PulmonaryMonitor source.

App task execution

When an app task is triggered, an AppTaskExecutor executes it:

It creates a UserTask from the AppTask configuration. The user task embeds a BackgroundTaskExecutor that collects the measures once the task is started.
It enqueues the user task in the AppTaskController. The AppTaskController is a singleton and is central to handling app tasks, including creating notifications.
All triggered user tasks are available in userTaskQueue for custom rendering in the app.
The user task has a set of callback methods that the app calls to mark the task as started, done, canceled or expired.
When the user task is started, its embedded BackgroundTaskExecutor collects the measures. Collection stops when the task is marked as done or, for one-time measures, when the measures have been collected.

The user task queue

Use the userTaskQueue property on AppTaskController to access enqueued tasks. In PulmonaryMonitor this happens in task_list_view_model.dart:

List<UserTask> get tasks => AppTaskController().userTaskQueue;

To react to state changes, listen to events on the user task queue:

 AppTaskController().userTaskEvents.listen((event) {
   switch (event.state) {
     case UserTaskState.initialized:
       //
       break;
     case UserTaskState.enqueued:
       //
       break;
     case UserTaskState.dequeued:
       //
       break;
     case UserTaskState.started:
       //
       break;
     case UserTaskState.done:
       //
       break;
     case UserTaskState.canceled:
       //
       break;
     case UserTaskState.expired:
       //
       break;
     case UserTaskState.undefined:
       //
       break;
   }
 });

Rendering user tasks in the app

You can render enqueued user tasks in any app-specific UI. In PulmonaryMonitor, the task list shown above is implemented in task_list_page.dart.

This widget builds the scrollable list view of task cards:

class TaskListPageState extends State<TaskListPage> {
  TaskListViewModel get model => widget.viewModel;

  @override
  Widget build(BuildContext context) => Scaffold(
    appBar: AppBar(title: const Text('Tasks')),
    body: ListenableBuilder(
      listenable: model,
      builder: (BuildContext context, Widget? child) => Scrollbar(
        child: ListView.builder(
          itemCount: model.tasks.length,
          padding: const EdgeInsets.symmetric(vertical: 8.0),
          itemBuilder: (context, index) =>
              getTaskCard(context, model.tasks[index]),
        ),
      ),
    ),
  );
  ...
}

Each card uses a StreamBuilder on the task's stateEvents to render the user task:

Widget getTaskCard(BuildContext context, UserTask userTask) => Center(
  child: Card(
    elevation: 10,
    shape: RoundedRectangleBorder(borderRadius: BorderRadius.circular(15.0)),
    child: StreamBuilder<UserTaskState>(
      stream: userTask.stateEvents,
      initialData: UserTaskState.initialized,
      builder: (context, AsyncSnapshot<UserTaskState> snapshot) => Column(
        mainAxisSize: MainAxisSize.min,
        children: <Widget>[
          ListTile(
            leading: taskTypeIcon[userTask.type],
            title: Text(userTask.title),
            subtitle: Text(userTask.description),
            trailing: taskStateIcon[userTask.state],
          ),
          (userTask.availableForUser)
              ? OverflowBar(
                  children: <Widget>[
                    TextButton(
                      child: const Text('PRESS HERE TO FINISH TASK'),
                      onPressed: () {
                        userTask.onStart(); // Mark the task as started.

                        // Check if the task has a UI widget to be shown
                        if (userTask.hasWidget) {
                          // Push the task widget to the app.
                          // Note that the widget is responsible for calling the onDone method when the task is done.
                          Navigator.push(
                            context,
                            MaterialPageRoute<Widget>(
                              builder: (context) => userTask.widget!,
                            ),
                          );
                        } else {
                          // A non-UI sensing task that collects sensor data.
                          // Automatically stops after 10 seconds.
                          Timer(
                            const Duration(seconds: 10),
                            () => userTask.onDone(),
                          );
                        }
                      },
                    ),
                  ],
                )
              : const Text(""),
        ],
      ),
    ),
  ),
);

When the user taps PRESS HERE TO FINISH TASK, the app starts the user task with userTask.onStart(). If the task has a widget, the app pushes that widget to the UI. A non-UI sensing task runs for 10 seconds.

User task callbacks

The app calls these callback methods on a UserTask:

Callback	Purpose
`onStart`	Starts the task and starts collecting the defined measures.
`onCancel`	Cancels the task.
`onDone`	Marks the task as done and typically stops measure collection.
`onExpired`	Handles expiration and removes the task from the queue.
`onNotification`	Called when the user taps the OS notification for this task.

Notifications

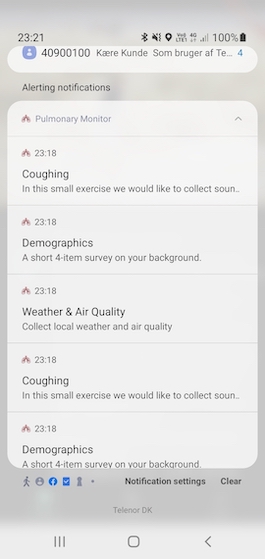

If you enable notification on an app task, CAMS sends a local notification with the task title and description.

Notifications use the flutter_local_notifications plugin, which requires app-level configuration. See Installation.

Types of app tasks

CAMS supports the following app task types, all enumerated in the AppTask class:

Type	Purpose
`SENSING_TYPE`	Collects sensing data in a background task.
`SURVEY_TYPE`	Starts a survey from the carp_survey_package.
`INFORMED_CONSENT_TYPE`	Shows an informed consent flow to the user, typically using the research_package.
`COGNITIVE_ASSESSMENT_TYPE`	Runs a cognitive assessment from the carp_survey_package.
`HEALTH_ASSESSMENT_TYPE`	Collects health data via the carp_health_package.
`AUDIO_TYPE`, `VIDEO_TYPE`, `IMAGE_TYPE`	Collects media data via the carp_audio_package.

Extending the app task model

To add a custom app task, create a new UserTask type and register a factory for it. This works like extending measures and probes, as described in Extending CAMS.

Create a custom user task

The AudioUserTask in PulmonaryMonitor is a custom app task. It is implemented in audio_user_task.dart:

/// A user task handling audio recordings.
///
/// The [widget] returns an [AudioMeasurePage] that can be shown on the UI.
///
/// When the recording is started (calling the [onRecord] method),
/// the background task collecting sensor measures is started.
class AudioUserTask extends UserTask {
  static const String AUDIO_TYPE = 'audio';

  final StreamController<int> _countDownController =
      StreamController.broadcast();
  Stream<int> get countDownEvents => _countDownController.stream;
  Timer? _timer;

  /// Duration of audio recording in seconds.
  int recordingDuration = 10;

  AudioUserTask(super.executor, [this.recordingDuration = 10]);

  @override
  bool get hasWidget => true;

  @override
  Widget? get widget => AudioMeasurePage(audioUserTask: this);

  /// Callback when recording is to start.
  /// When recording is started, background sensing is also started.
  void onRecord() {
    backgroundTaskExecutor.start();

    // start the countdown, once tick pr. second.
    _timer = Timer.periodic(const Duration(seconds: 1), (_) {
      _countDownController.add(--recordingDuration);

      if (recordingDuration <= 0) {
        _timer?.cancel();
        _countDownController.close();

        // pause the background sensing and mark this task as done
        backgroundTaskExecutor.pause();
        super.onDone();
      }
    });
  }
}

Define a user task factory

CAMS uses a UserTaskFactory to create and enqueue the right user task type, so you need a factory for your custom types. The factory for AudioUserTask:

/// A factory that can [create] a [UserTask] based on the type of app task.
/// In this case an [AudioUserTask].
class PulmonaryUserTaskFactory implements UserTaskFactory {
  @override
  List<String> types = [AppTask.AUDIO_TYPE];

  @override
  UserTask create(AppTaskExecutor executor) => switch (executor.task.type) {
    AppTask.AUDIO_TYPE => AudioUserTask(executor),
    _ => BackgroundSensingUserTask(executor),
  };
}

Register the factory

AppTaskController().registerUserTaskFactory(PulmonaryUserTaskFactory());

Do this while you initialize CAMS in the app. In PulmonaryMonitor, registration happens when the Sensing class is created in sensing.dart.
